本表格展(zhan)示(shi)了各類電(dian)池產(chan)品(pin)的詳細信(xin)息，包括產(chan)品(pin)編(bian)號、類型(xing)、額(e)定電(dian)壓(ya)、容(rong)量(liang)和持續(xu)電(dian)流。
型號 Model | 放電(dian)電(dian)阻 Load（KΩ） | 容量（mAh） Capacity | 初始(shi)最小平均 放電時間(jian)（h） MAD（Initial） | 標(biao)注放電電流Imax（mA） Standard Working Current | 最(zui)大連續電流(liu)Ip（mA） Max Continous Working Current | 最大脈沖電流(liu)Ip（mA） Max Pulse Working Current | 最大(da)異常充電呢電壓（V） | 最大異充電電流（mA） Abnormal Charge Curret Limit | 標稱尺(chi)寸（mm） Nominal Dimesion | 標稱重(zhong)量(g) Weight |
|---|---|---|---|---|---|---|---|---|---|---|
| CR920 | 68 | 25 | 565 | 0.1 | 0.3 | 5 | 3 | 1 | Φ9.5*2.0 | 0.55 |

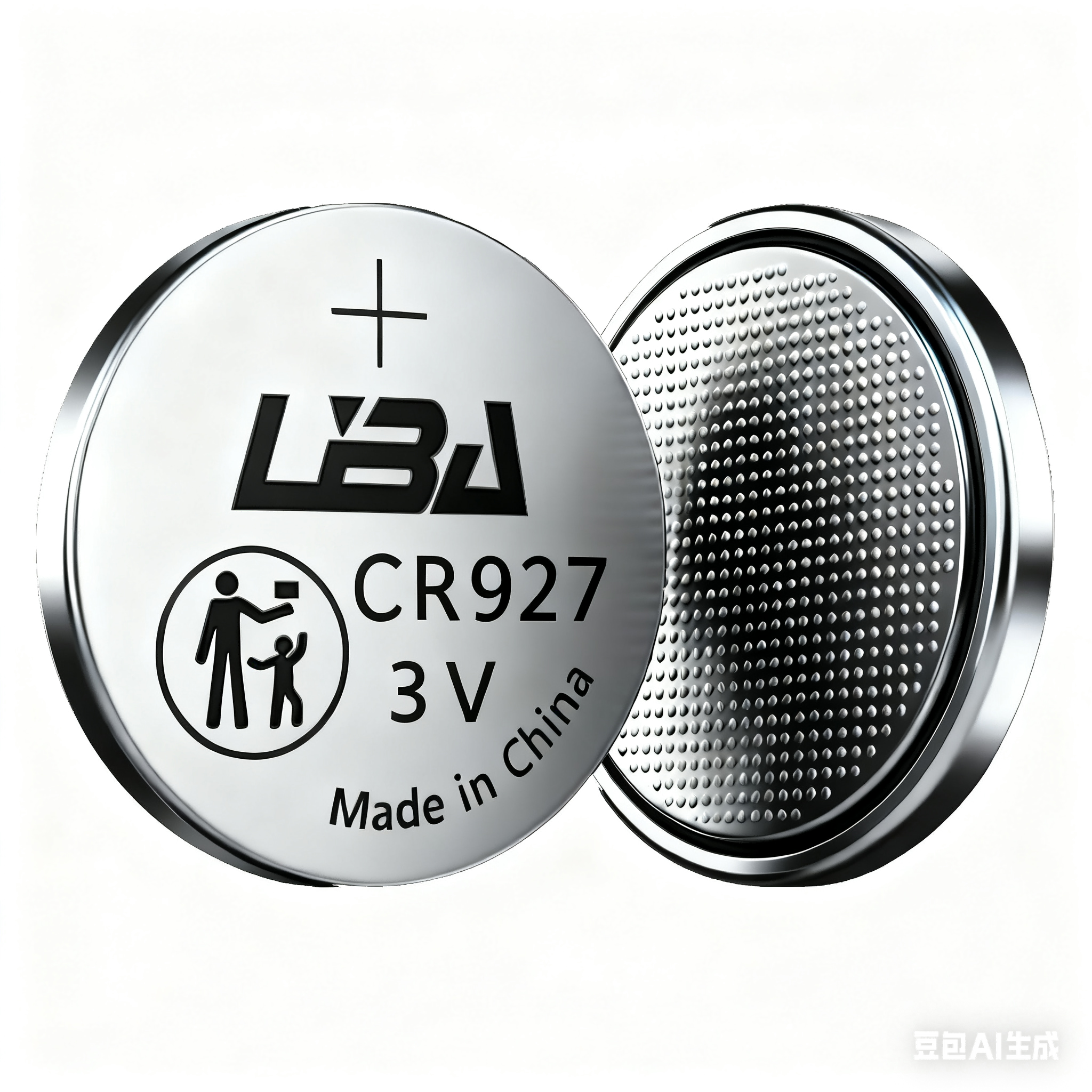

| CR927 | 62 | 32 | 660 | 0.1 | 0.3 | 5 | 3 | 1 | Φ9.5*2.7 | 0.65 |
| CR1025 | 68 | 30 | 680 | 0.1 | 0.3 | 5 | 3 | 1 | Φ10.0*2.5 | 0.70 |
| CR1212 | 68 | 20 | 450 | 0.1 | 0.3 | 5 | 3 | 1 | Φ12.5*1.2 | 0.60 |
| CR1216 | 62 | 25 | 520 | 0.1 | 0.3 | 5 | 3 | 1 | Φ12.5*1.6 | 0.75 |
| CR1220 | 62 | 38 | 780 | 0.1 | 0.5 | 5 | 3 | 1 | Φ12.5*2.0 | 0.80 |
| CR1225 | 62 | 50 | 1035 | 0.1 | 0.5 | 5 | 3 | 1 | Φ12.5*2.5 | 0.85 |
| CR1616 | 30 | 50 | 500 | 0.1 | 1.0 | 8 | 3 | 3 | Φ16.0*1.6 | 1.10 |
| CR1620 | 30 | 75 | 760 | 0.1 | 1.0 | 8 | 3 | 4 | Φ16.0*2.0 | 1.25 |
| CR1632 | 15 | 130 | 680 | 0.2 | 1.0 | 8 | 3 | 5 | Φ16.0*3.2 | 2.00 |
| CR2016 | 30 | 100 | 1000 | 0.1 | 1.0 | 15 | 3 | 4 | Φ20.0*1.6 | 2.00 |
| CR2020 | 30 | 120 | 1200 | 0.1 | 1.0 | 15 | 3 | 4 | Φ20.0*2.0 | 2.20 |
| CR2025 | 15 | 180 | 900 | 0.2 | 1.0 | 15 | 3 | 6 | Φ20.0*2.5 | 2.60 |

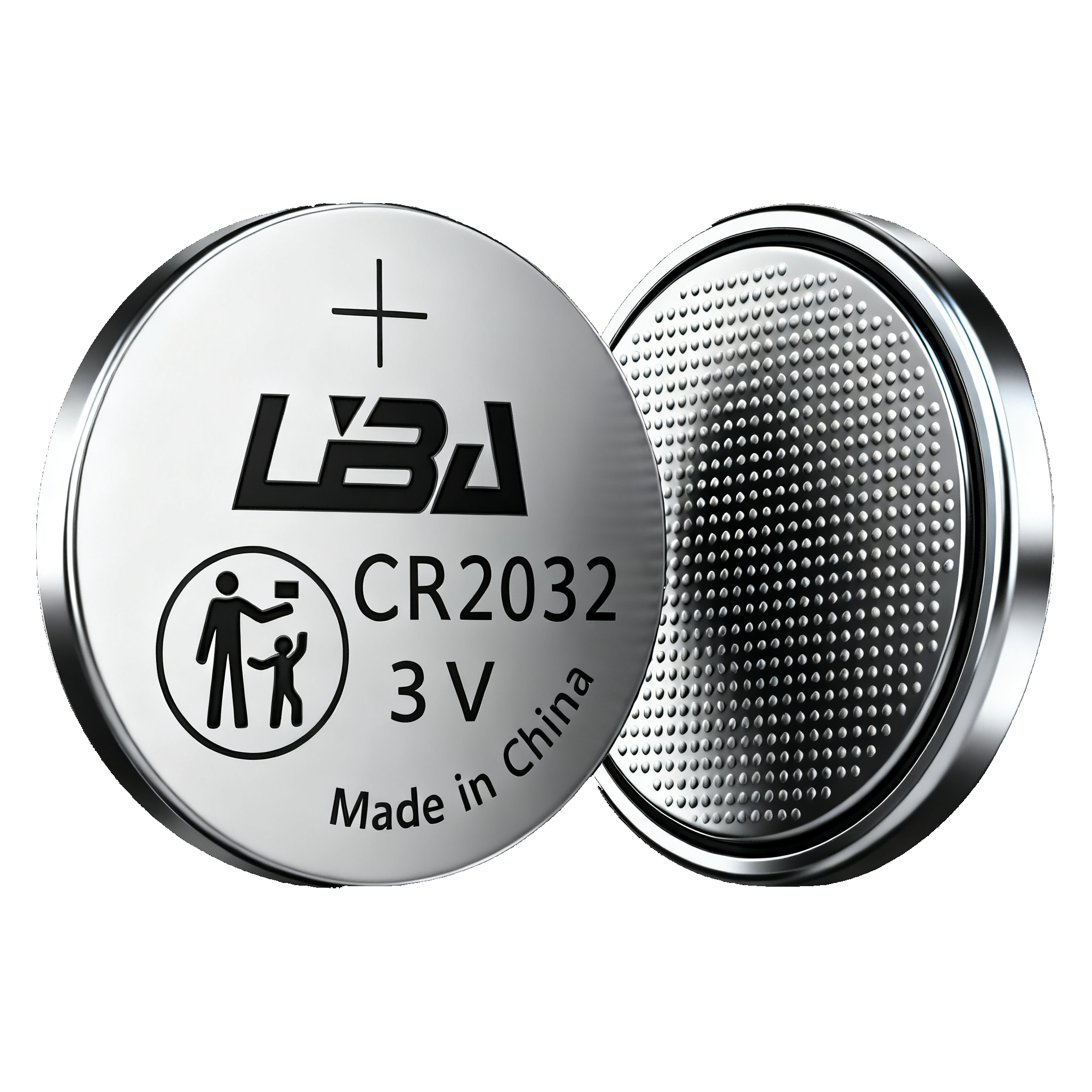

| CR2032 | 15 | 240 | 1200 | 0.2 | 1.0 | 15 | 3 | 8.5 | Φ20.0*3.2 | 3.20 |
| CR2050 | 15 | 240 | 1200 | 0.2 | 1.0 | 15 | 3 | 8.5 | Φ20.0*5.0 | 3.20 |
| CR2320 | 15 | 130 | 650 | 0.2 | 2.0 | 20 | 3 | 6 | Φ23.0*2.0 | 3.00 |
| CR2325 | 15 | 190 | 950 | 0.2 | 2.0 | 20 | 3 | 8 | Φ23.0*2.5 | 3.30 |
| CR2330 | 15 | 260 | 1300 | 0.2 | 2.0 | 20 | 3 | 10 | Φ23.0*3.0 | 4.00 |
| CR2335 | 15 | 300 | 1500 | 0.2 | 2.0 | 20 | 3 | 10 | Φ23.0*3.5 | 4.30 |
| CR2354 | 7.5 | 550 | 1375 | 0.4 | 2.0 | 20 | 3 | 10 | Φ23.0*5.4 | 6.90 |
| CR2412 | 15 | 100 | 500 | 0.2 | 2.0 | 25 | 3 | 5 | Φ24.0*1.2 | 2.20 |

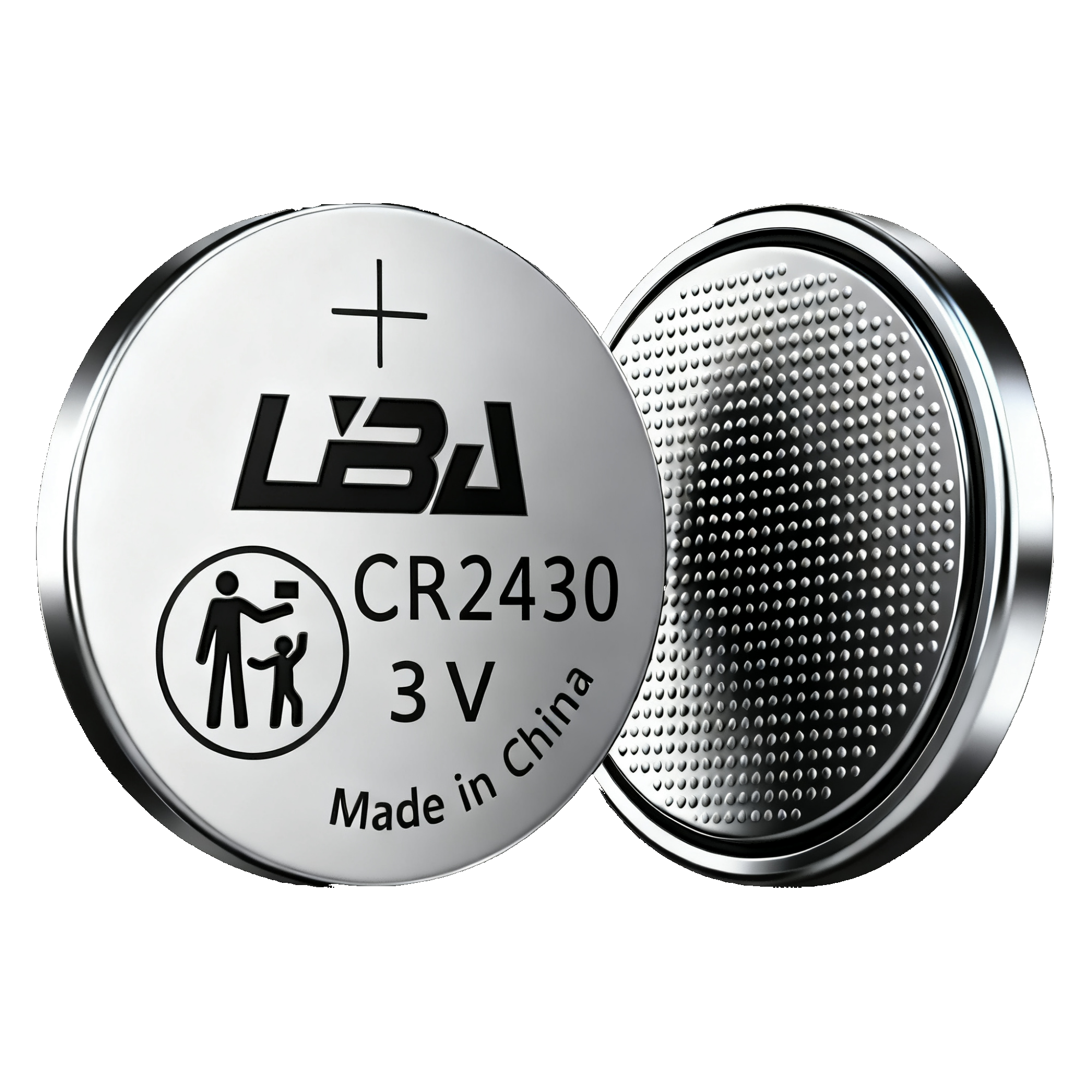

| CR2430 | 15 | 300 | 1575 | 0.2 | 3.0 | 25 | 3 | 10 | Φ24.0*3.0 | 4.20 |
| CR2440 | 7.5 | 480 | 1200 | 0.4 | 3.0 | 25 | 3 | 10 | Φ24.0*4.0 | 5.40 |

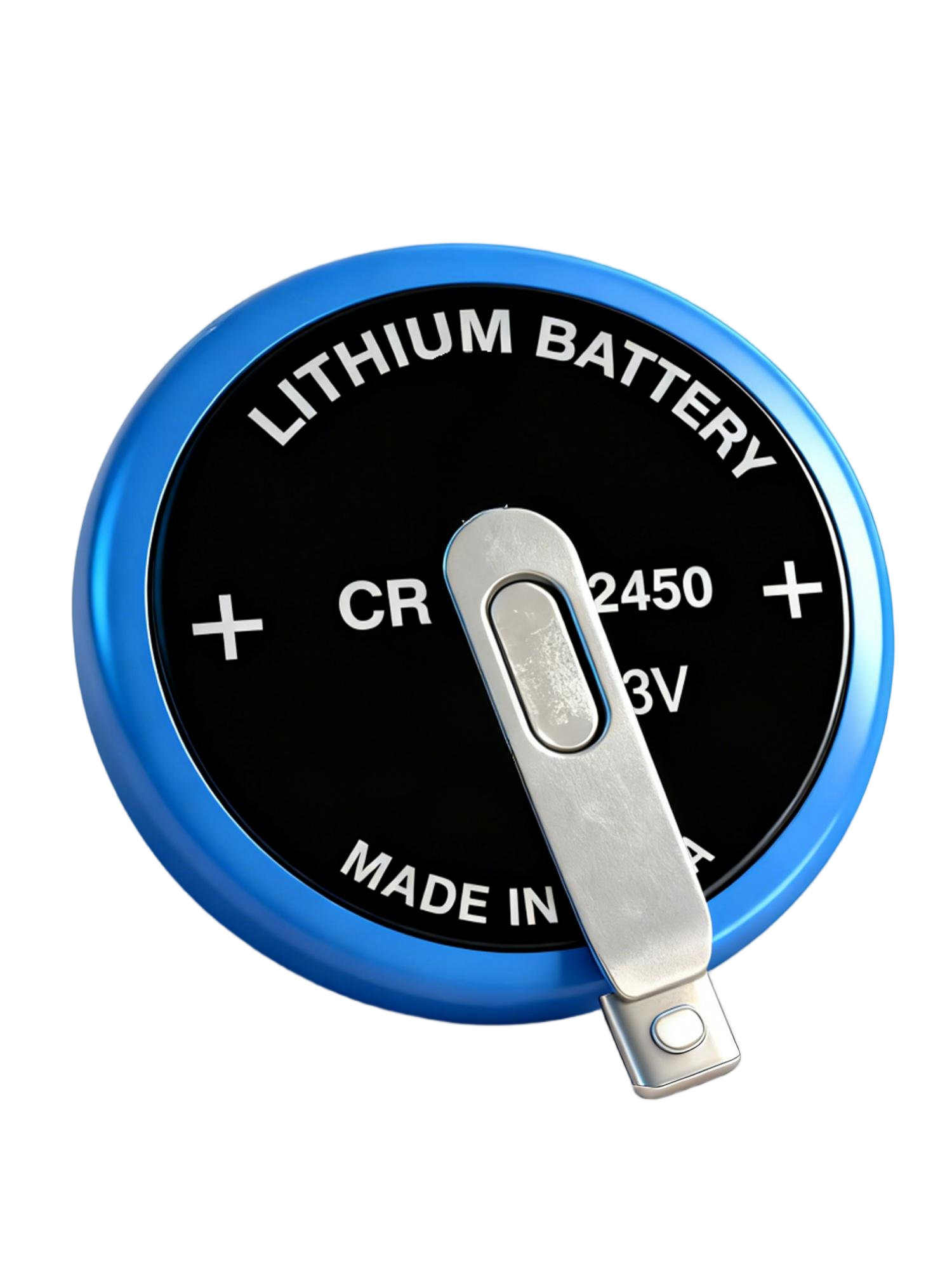

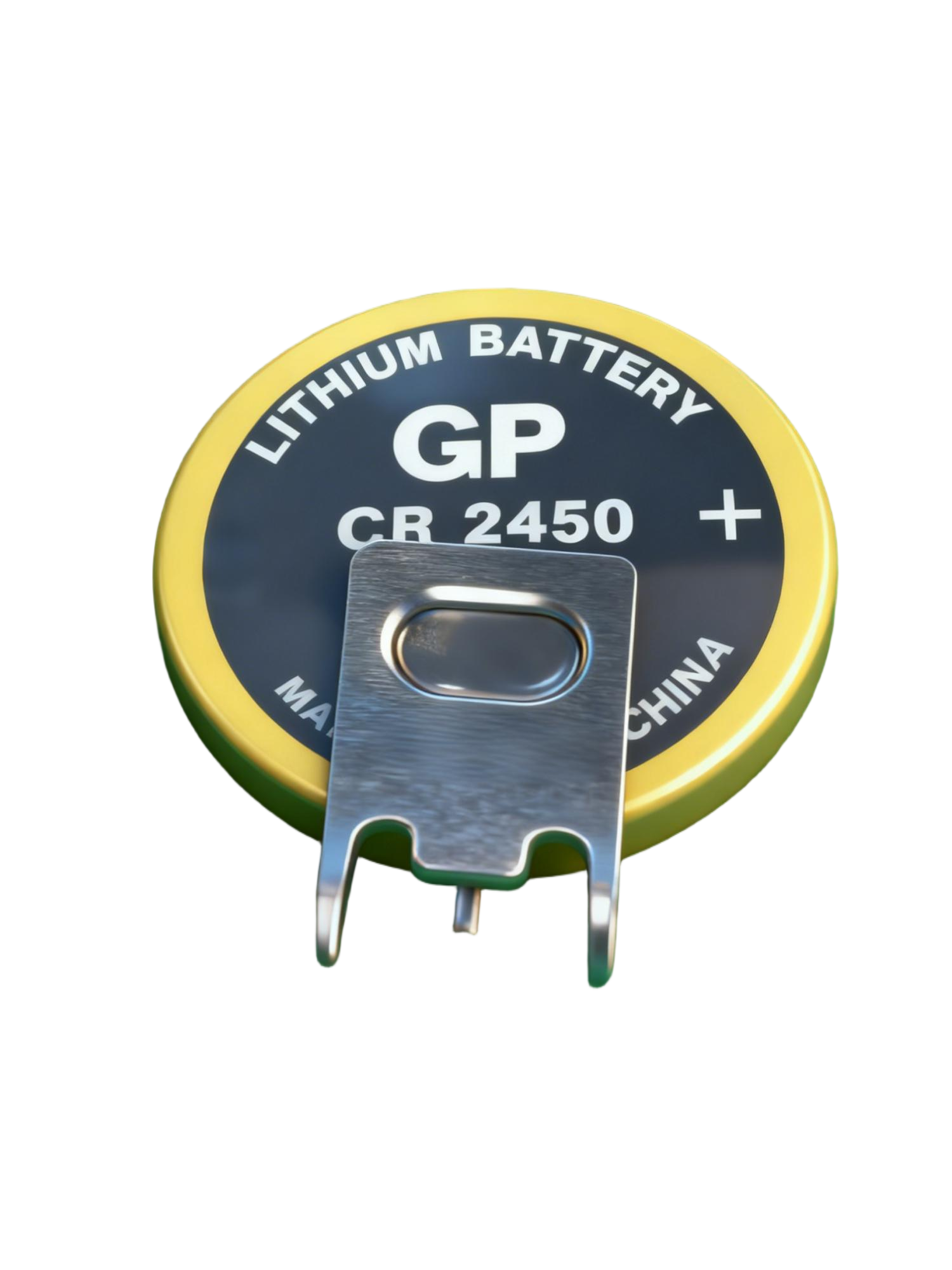

| CR2450 | 7.5 | 600 | 1500 | 0.4 | 3.0 | 30 | 3 | 10 | Φ24.0*5.0 | 6.00 |
| CR2477 | 5.1 | 1000 | 1700 | 0.59 | 3.0 | 30 | 3 | 14 | Φ24.0*7.7 | 10.50 |
| CR3032 | 7.5 | 550 | 1375 | 0.4 | 3.0 | 35 | 3 | 10 | Φ30.0*3.2 | 6.80 |
| CR3832 | 3.75 | 850 | 1062 | 0.8 | 20.0 | 75 | 3 | 20 | Φ38.0*3.2 | 11.00 |
